Key features of InfraWorks
Context modeling
Aggregate data to generate a context model that represents a project’s built and natural environment
Conceptual design
Produce design concepts of infrastructure projects, then rapidly evaluate and iterate on design options
Roadway design
Accelerate design by using component roads and planning roads to get a conceptual view of your project
Sight distance analysis
Analyze sight distance for roads and intersections to identify blind spots or sight failure zones
Traffic and mobility simulation
Analyze traffic flow and use multi-modal simulation to evaluate performance
Parametric civil structures
Use parametric bridge and tunnel component parts and assemblies, as well as parametric road decorations
Bridge design
Support for precast I-girder and steel plate girder bridge types
Refined bridge analysis
Create analytical models for steel composite and prestressed pretensioned concrete girder bridges
Tunnel design
Design parametric tunnels in the context of your overall infrastructure design project
Drainage design
Use Drainage Design for InfraWorks to model watersheds, culverts, and drainage networks
Interoperability
Aggregate data from more than 50 file formats, including AutoCAD, Revit, IFC, and more
Create compelling presentations
Produce storyboards that include a series of snapshot views or a dynamic video pathway
More features
ENHANCED
Revit Family-based Custom Parametric Components
Reduce design time using Revit family-based parametric components, including 2D extruded components as well as 3D girders.
NEW
Elevation Measurement Tool
Hover over vertices on the clipping plane in the new point elevation option and see a visual cue that indicates which vertex’ elevation is then being displayed in the dynamic dimension marker, along with a leader line.
ENHANCED
Check for Updates

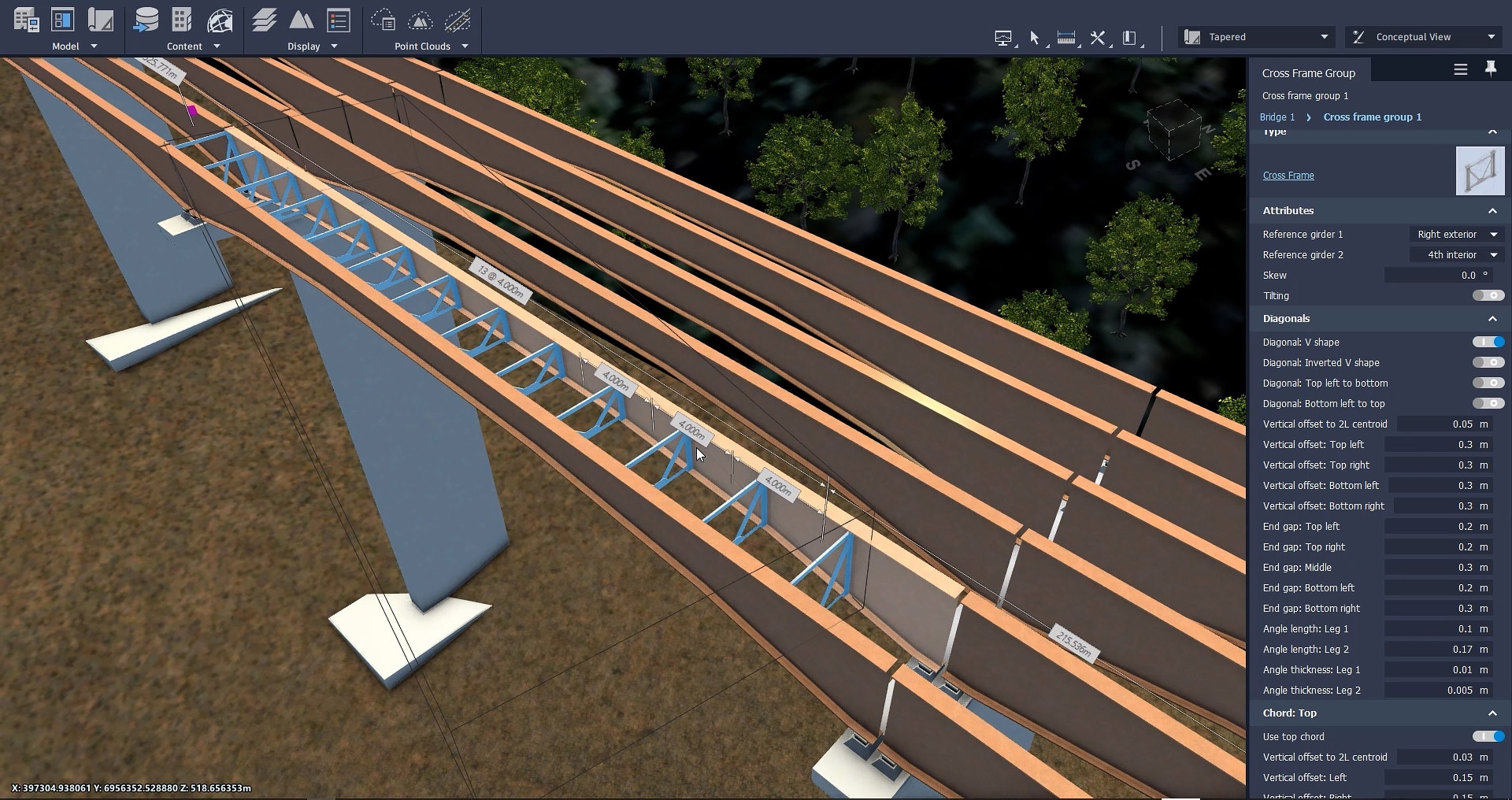

Select parametric bridge and tunnel content including cross frames, bearings and 2D sliced based geometry in the Style Palette and check for updates, then apply all the changes to all instances in the InfraWorks model.
ENHANCED
Revit category mapping for Inventor components
Assign more specific Revit categories for Inventor components and assemblies when importing into the InfraWorks style palette for quality documentation of your designs.
ENHANCED
Parametric Content Display
See all expected and optional parameters in InfraWorks for all parametric component types in the style palette.
Structural Bridge Design
Bi-directional workflow enables a more efficient process for the management of changes to steel girder dimensions during the iteration of bridge design.
Geometry Clipping
Isolate geometry of interest to better understand bridge and tunnel designs.
Component-based bridge design
Edit bridge decks and girders independently of other bridge components.
Model Builder
Model Builder uses the cloud to find data layers and then builds a model for an area you specify.
Flood simulation
Analyze flooding projects based on multiple inflow locations and water elevation changes over time.
Traffic simulation
Analyze traffic flow, display traffic analysis results, and generate traffic simulation animations. (video: 2:55 min.)
Mobility simulation
Create animated simulations of transit, parking, personal, and/or taxi-mode modeling. (video: 1:47 min.)
2D distance and slope
Measure the distance (horizontal and vertical) and slope between two points in a model.
Material quantities
Calculate earthwork quantities on multiple selected roads or within a station range, area of interest parcel, or right of way.
Bridge line girder analysis
Perform a detailed analysis in the cloud.
Vegetation
Bring InfraWorks models to life by adding trees, flowers, bushes, and other vegetation. You can edit the style of vegetation using the style palette, as well as the layout of the vegetation.
